Projection Smart PDLC Glass

switchable glass

privacy glass

intelligent glass

Factory

Description

Projection Smart PDLC Glass

Smart PDLC glass is also known as: switchable glass, intelligent glass, electrically controlled glass, Privacy Glass, magic glass, Smart PDLC glass is a finished glass in which laminated smart PDLC film between two pieces of glass through a high-temperature glass lamination processing ,It has the functional characteristics of "transparent power-on and opaque power-off". Office is one of the most widely application industries of smart PDLC glass. Smart PDLC glass perfectly solves the separation of office space, achieves the coexistence of privacy and openness, which can switch the control state at will. Compared with traditional partitions, it is more beautiful, more technological, more soundproof, and safer.

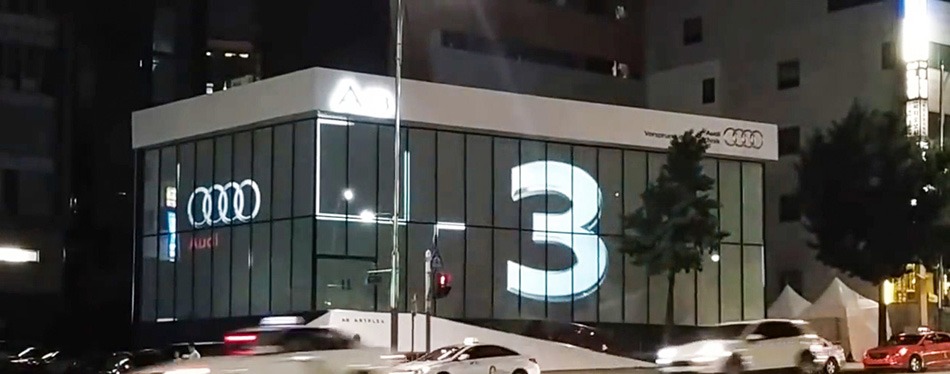

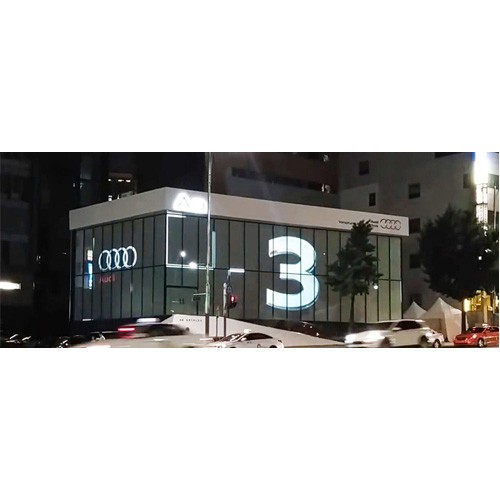

Projection Smart PDLC Glass Effect

Projection Smart PDLC Glass Principle

The Smart PDLC Glass is laminated smart film that is sandwiched between two pieces of glass through Glass lamination processing. The liquid crystal molecules of the smart film appear disorderly arranged in the state of no electricity, showing opaque state; the liquid crystal molecules in the state of electricity are based on the direction of the electric field to makes the smart glass have high light transmittance.

Projection Smart PDLC Glass Structure

The Smart PDLC glass structure is composed of glass+EVA+PDLC+EVA+glass. It is a kind of laminated safety glass. The Smart PDLC glass can be made into hollow glass/insulated glass, or it can be made into LOW-E + insulated glass, which can be customized according to requirements.

Product parameter

Optical parameters

Test items	Power-on test	Power-off test
Light transmittance	82%-87%	5%
Parallel light transmittance	55%
Haze	4%	95%
Viewing angle	≤150°
UV blocking rate	99%	99%
Infrared blocking rate	≥50%	≥50%

Performance parameter

Test items	Power-on test	Power-off test
Operating Voltage	AC60V
Power consumption	5W/m2
Operating temperature	from -10°C to 60°C
Storage temperature		from -10°C to 50°C
Switch times	>100million
Response time	45ms	5ms
